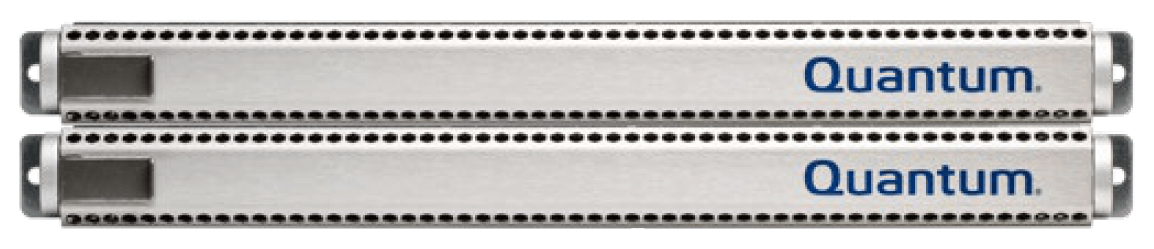

Purpose;It ensures the operation of the StorNext storage environment and manages all file system metadata operations System Specification;Each individual node is a standard 1U PCIe4 server device with an AMD server processor running at 3 GHz and a choice of DDR4 ECC memory size — 256 GB or 512 GB High availability features include;Each individual node is equipped with two 750W redundant power supplies with field-replaceable capability, six replaceable cooling fans, two mirrored boot NVMe drives, and two mirrored embedded data logging drives System Configuration;A single or dual pair with high availability supports combined or separate storage of metadata and user data using Quantum QXS-5 Series (HDD/SSD) or Quantum F-Series (NVMe) systems, as well as separate storage of metadata and user data on third-party storage. A subscription to StorNext version 7.2 is required Licensing;Subscription for StorNext 7 with support level options, client licenses for connected clients are not required. Customer support;StorNext 7 directly supports StorNext-connected clients on macOS, Windows, and Linux, StorNext LAN network clients for macOS, Windows, and Linux, as well as connections through SMB, NFS, Active Directory, OpenLDAP, and RESTful API Connection;Each node offers 3 PCIe4 slots with the following options: Ethernet: • two (2) 100GbE ports with optical QSP28 ports or copper DAC, • four (4) 10GbE/25GbE ports with automatic detection with optical QSP28 ports or copper DAC. Optics: • four (4) optical 32Gb ports

Each node offers 3 PCIe4 slots with the following options:

Ethernet: • Two (2) 100GbE ports with QSP28 optical ports or copper DAC • Four (4) 10GbE/25GbE ports with auto-negotiation with QSP28 optical ports or copper DAC Optics: • Four (4) 32Gb optical ports

Width;Standard 1U, 17.2" (437 mm) Depth;23.5" (597 mm) Weight;25 lbs (11.34 kg)

Operating temperature;from 10°C to 35°C (50°F to 95°F) Unfavorable temperature;from -40°C to 60°C (from -40°F to 140°F) Operating relative humidity;from 8% to 90% (non-condensing) Unfavorable relative humidity;from 5% to 95% (non-condensing)

Total Output Power

;• 700 W: 100 - 140 Vac ;• 750 W: 200 - 240 Vac ;• 750 W: 200 - 240 Vdc (only for CCC)

Input

;• 100 - 140 Vac / 8 - 6 A / 50 - 60 Hz ;• 200 - 240 Vac / 4.5 - 3.8 A / 50 - 60 Hz ;• 200 - 240 Vdc / 4.5 - 3.8 A (только CCC)

+12V

;• Max: 58 A / Min: 0.5 A (100 - 140 Vac) ;• Max: 62 A / Min: 0.5 A (200 - 240 Vac) ;• Max: 62 A / Min: 0.5 A (200 - 240 Vdc) (for CB/CCC only)

+5V sb

;• Max: 3 A / Min: 0 A

Certification

;Platinum certification
