Number of slots; from 100 to 14,100 Number of drives; from 1 to 192 Supported drive types;Full-Height (FH) LTO drives

LTO-9 (standard / compressed); 1,800 to 253,800 / 4,500 to 634,500 LTO-8 (standard / compressed); 1,200 to 169,200 / 3,000 to 423,000 LTO-7 (standard / compressed); 600 to 84,600 / 1,500 to 211,500

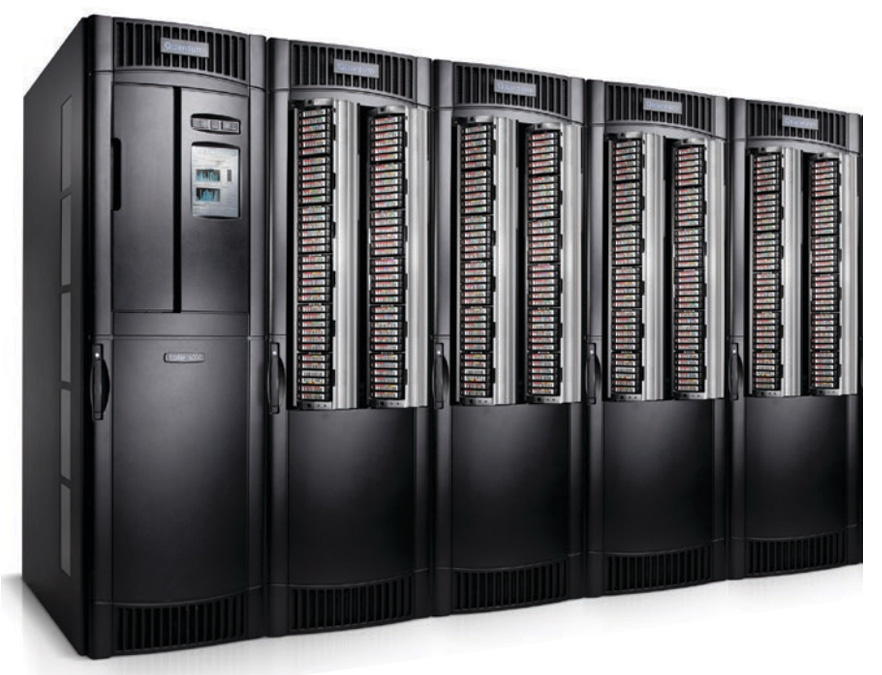

Module form factor;Full rack Minimum size;One module (one full rack) Maximum size;20 modules Placement;Freestanding, linear scaling Scalability;Scalable to 20 racks, CoD: 100, 200, 400, 700, 1'500, 3'000, 5'000, 7'000, 9'000, 11'000

Inventory speed; For most modules - 1 minute and 12 seconds, for four modules - less than 5 minutes Module upgrade; Requires installation by Quantum

Insertion/extraction

Control module;One insertion/ejection (I/E) station with 24 slots Expansion Modules;Options of 0, 24 or 72 I/E station slots per expansion module Maximum number of insertion/ejection station (I/E) slots; 1'104 slots Extended Insertion/Ejection; Allows the use of licensed storage slots as insertion/ejection (I/E) elements Bulk insertion/removal; Up to 540 slots per High Density Expansion Module (HDEM) without interruption Automatic insertion; The library automatically imports cartridges into multiple partitions based on user policies, with no requirement to place cartridges in specific I/O slots Extraction Redirection; Automatically redirects extracted cartridges to the bulk unload area or to active storage, based on user policies

Drive interfaces; 8 Gb optical and 12 Gb SAS (LTO-9 only) Library Interface; End-to-end Data Bridge drives, 1 GbE with remote GUI and RESTful web services for library management

MSBF;More than 3 million MTTR;20 minutes / 10 minutes when changing with a double robot Voltage;0 to 240 VAC, 2-24 kVA, -48VDC, <1 kVA per module Power supply;For control and expansion modules as well as for HD expansion modules: Optional 2N / 80 PLUS Gold certified power supplies Dual robotization;Yes

Control module; 77.4 in x 24.3 in x 38.3 in (196.6 cm x 61.7 cm x 97.4 cm) Expansion module; 77.4 in x 24.3 in x 38.3 in (196.6 cm x 61.7 cm x 97.4 cm) Parking module; 77.4 d x 24.3 d x 38.3 d (196.6 cm x 61.7 cm x 97.4 cm)

Temperature

Recommended;LTO-7, LTO-8: 16 to 25°C (61 to 77°F), LTO-9: 15 to 25°C (59 to 77°F) Acceptable;LTO-7, LTO-8: 16 to 35 °C (61 to 95 °F), LTO-9: 15 to 35 °C (59 to 95 °F) For delivery conditions;-23 to 49 °C (-9 to 120 °F)

Relative humidity

Recommended; 20 to 50% (non-condensing) Permissible; from 20 to 80% (non-condensing) For delivery conditions;5 to 80% (non-condensing)

Maximum temperature difference

Recommended;5°C/hour Acceptable;5 °C / hour

Maximum change in humidity

Recommended;5%/hour Acceptable; 5% / hour

Temperature limits according to humidity

Recommended;LTO-7, LTO-8: Dry Bulb Temp <= 26°C (79°F), LTO-9: Max. dew point 22°C (72°F) Acceptable;LTO-7, LTO-8: Dry Bulb Temp <= 26°C (79°F), LTO-9: Max. dew point 22°C (72°F) For delivery conditions;Dry bulb temp. <= 26 °C (79 °F)

Maximum height

Permissible;3,048 m (10,000 ft) For delivery conditions;12,192 m (40,000 ft)

Safety standards; IEC 60950-1 and IEC 62368-1 with international differences, EN62368-1, UL 62368-1, IS3525(Part 1), CNS14336-1 Emission standards;FCC Part 15 Class A, EN 55032 Class A, KN 32, VCCI, EN 300 386, CNS 13438 Class A, ICES-003 Class A Noise immunity;EN 55024, KN 35; KN24
